SV-DF-180GMK Main / Hero image SmartVision water show equipment

● UNDERWATER LED LIGHT

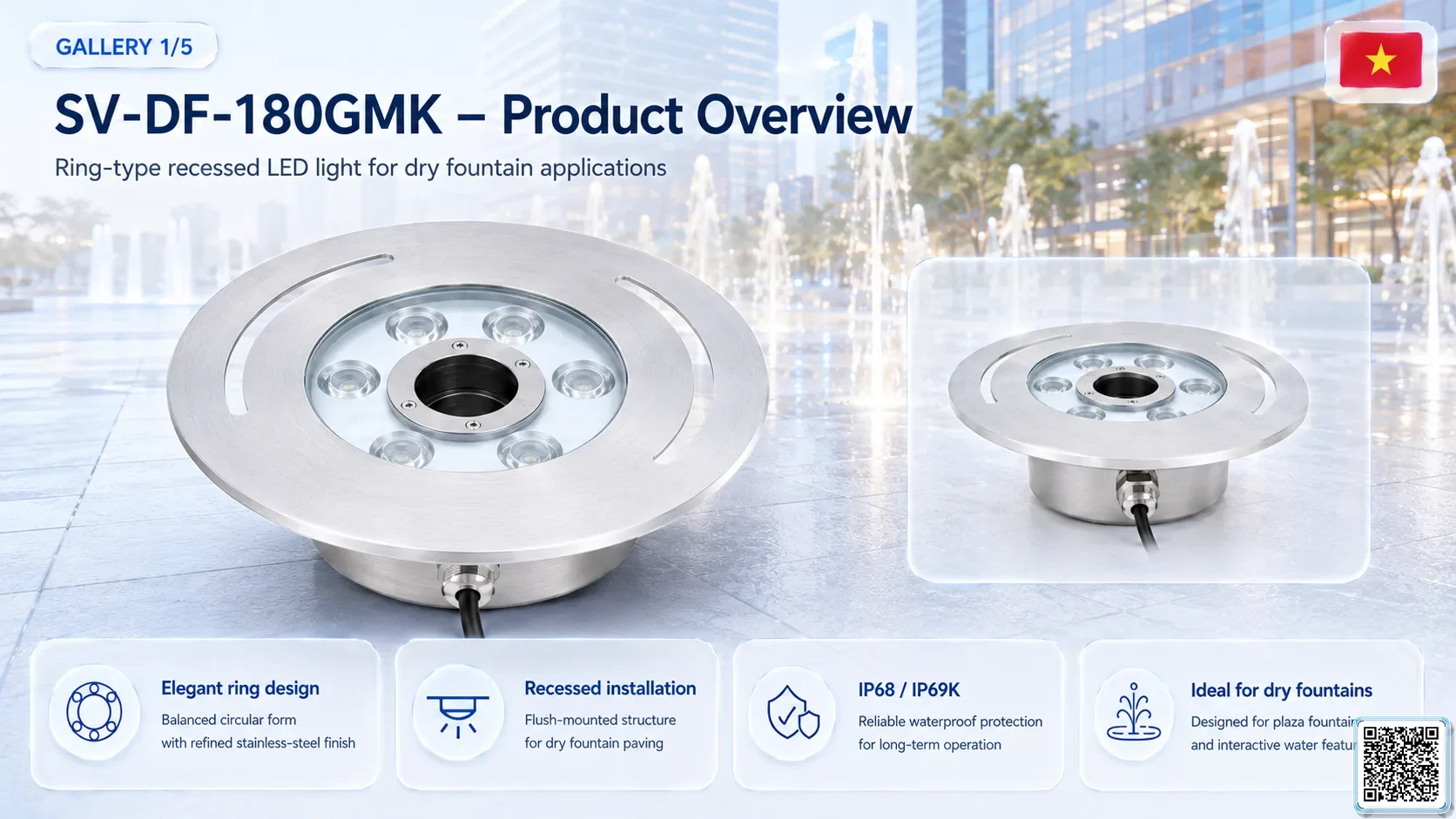

SV-DF-180GMKDry Fountain Ring LED Light

SV-DF-180GMK is a stainless-steel dry fountain ring LED light for dry-deck fountains, plaza water features and musical fountain lighting projects.

underwater-lightsSV-DF-180GMKRequest quotation

Choose configuration

Variant Voltage Control Beam Angle Quantity

Add to Project Builder

👁 132⬇ Download Catalogue ▣ Download CAD drawing

PRODUCT MEDIA

Catalogue, Technical Images & Drawings

Product Description Image2 images

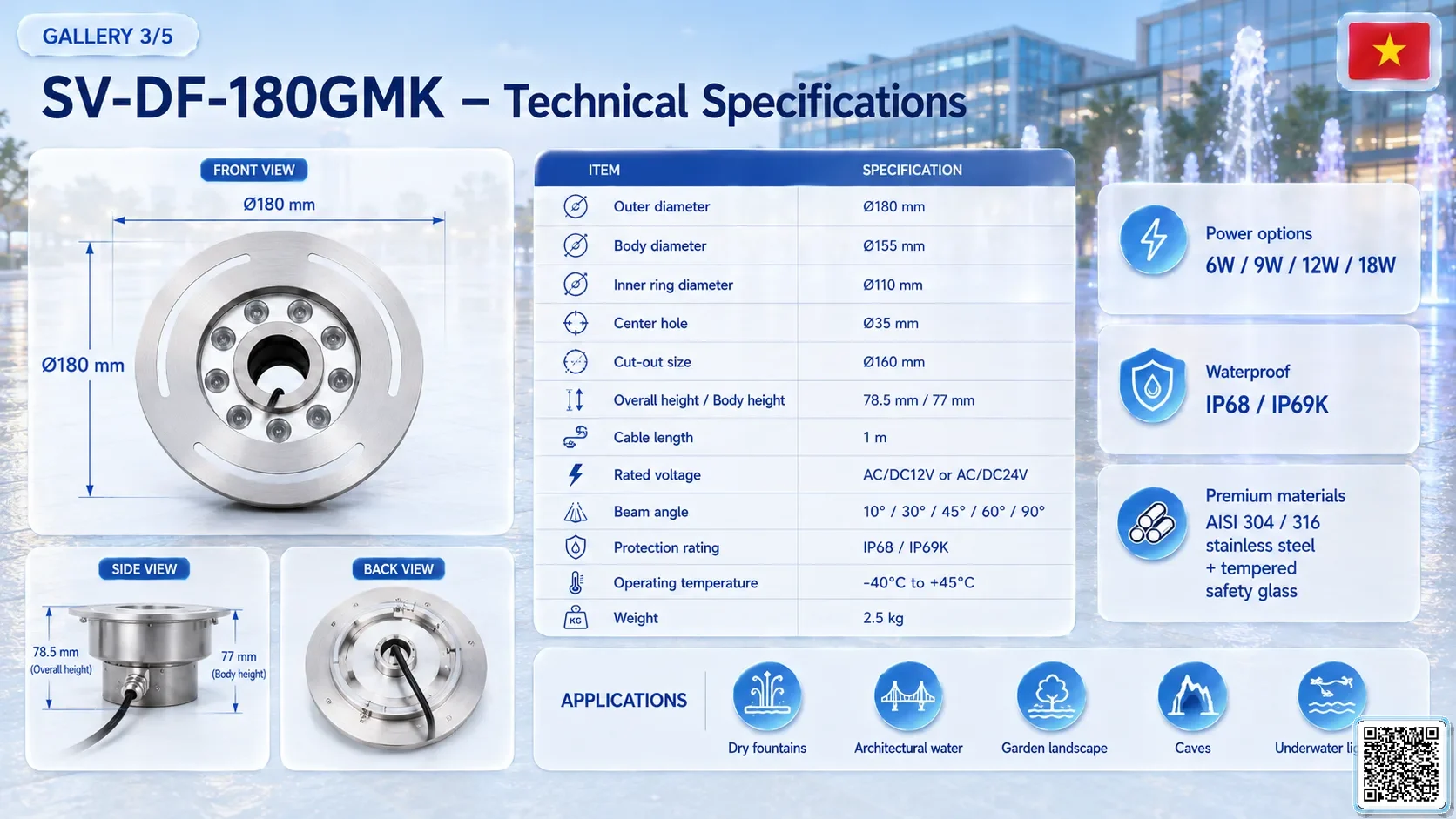

Technical Specifications

Series	Stainless Steel LED Fountain Ring Light For Dry Fountain Series
Installation Type	Dry fountain embedded / center-hole ring light installation
Cut Out Size	Φ160 mm
Lamp Body Size	180GMK body
Height	Embedded dry fountain ring body
IP Rating	IP68 / IP69 / IP69K
IK Rating	IK10 optional / high impact protection
Catalogue Page	35-36
Housing Material	AIS304 stainless steel standard / AIS316 optional
Tempered Glass	Heat-resistant tempered safety glass
LED Light Source	Cree / Osram / Lumileds / Epistar optional
Cable Type	H05RN-F / H07RN-F / UL / UV resistance / ozone resistance
Heat Dissipation	Integrated heat dissipation structure with built-in overload and overheat protection
Pressure Resistance Depth	Dry fountain / wet environment protection
Operating Temperature	-40°C ~ +55°C
Intelligent Control	PWM dimming / RGB Auto Change / DMX512 options
Waterproof Construction	IP68 / IP69 / IP69K sealed waterproof construction
Certification Standards	CE / ROHS / IP68 / IP69 / IP69K
Environmental Certification	RoHS compliant / low-voltage LED lighting
Center Hole	35 mm
Beam Angle	10° / 30° / 45° / 60° / 90°
Weight	2.5 kg
Outlet Size	35 mm
Material	AIS304 stainless steel standard / AIS316 optional
Dimensions	Outer Ø180 mm body; Lamp body: 180GMK body

Project Integration

Professional fountain ring light for dry fountain, center-jet and interactive water-show projects. Best for:

Project-ready:

Dry-deck fountain jets
Center-hole nozzle lighting
RGB/DMX synchronized water effects
Plaza, park, hotel and resort fountains.
Stainless-steel waterproof construction
Center-hole and beam options for nozzle matching
Ready for BOQ, zoning and installation drawings

⚙️ Compatible with SmartVision DMX and control cabinet workflow. SmartVision can support nozzle-light matching, quantity calculation, cable routing, control cabinet planning and complete project quotation. Add to project list → Build BOQ / Request proposal.

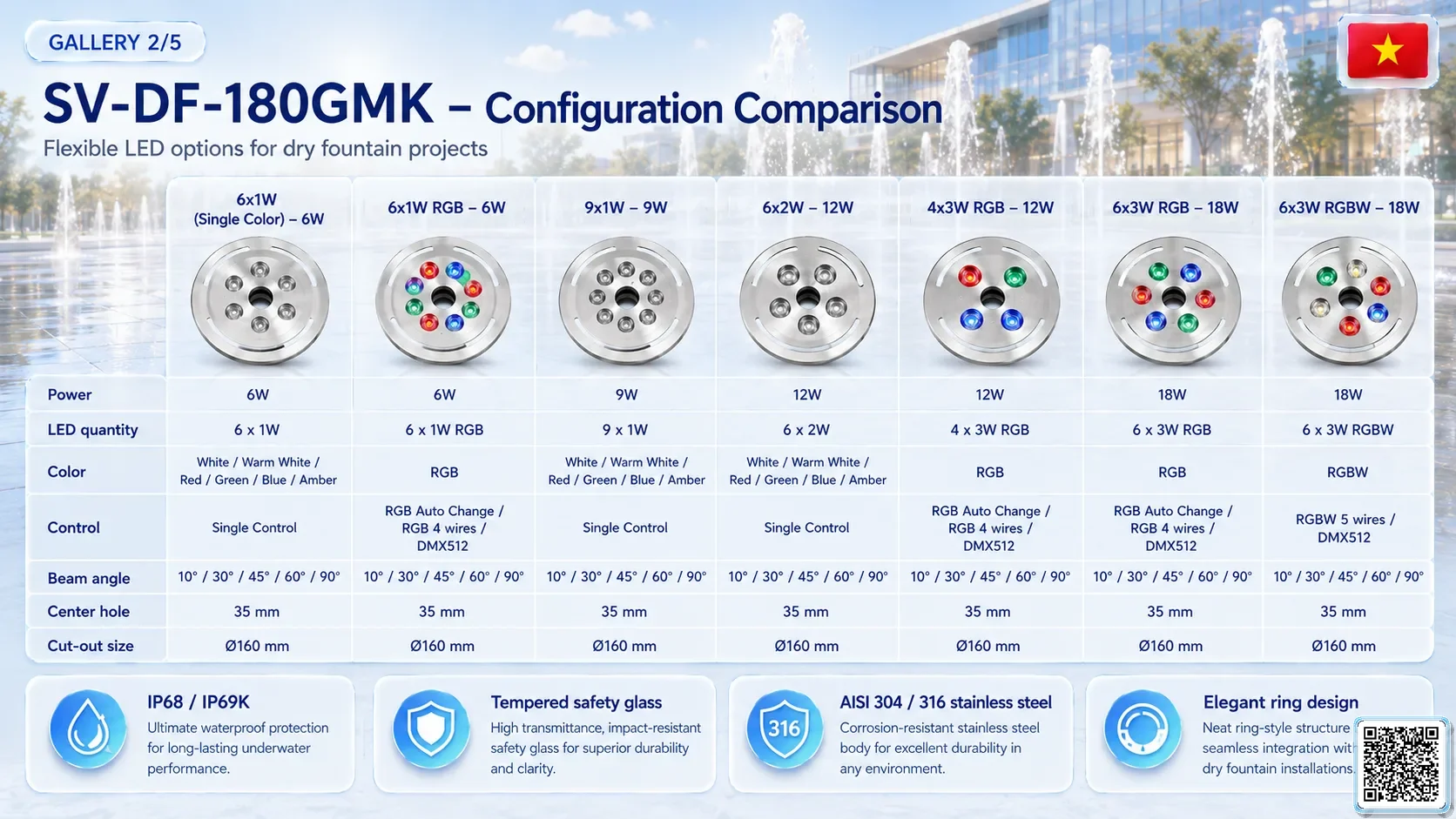

MODEL VARIANTS

Technical Parameters by Variant

Total variants: 7

Variant	DMX CH	Power	Voltage	Control	Luminous Flux	Center Hole	Beam Angle
6x1W (Single Color) SV-DF-180GMK-6X1W-SC	-	6W	AC/DC12V / AC/DC24V	Single Control		35 mm	10° / 30° / 45° / 60° / 90°
6x1W SV-DF-180GMK-6X1W-RGB	3	6W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	370	35 mm	10° / 30° / 45° / 60° / 90°
9x1W SV-DF-180GMK-9X1W-RGB	3	9W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	560	35 mm	10° / 30° / 45° / 60° / 90°
6x2W SV-DF-180GMK-6X2W-RGB	3	12W	AC/DC12V / AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	651	35 mm	10° / 30° / 45° / 60° / 90°
4x3W RGB SV-DF-180GMK-4X3W-RGB	3	12W	AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	749	35 mm	10° / 30° / 45° / 60° / 90°
6x3W RGB SV-DF-180GMK-6X3W-RGB	3	18W	AC/DC24V	RGB Auto Change / RGB 4 wires / DMX512	1122	35 mm	10° / 30° / 45° / 60° / 90°
6x3W RGBW SV-DF-180GMK-6X3W-RGBW	4	18W	AC/DC24V	RGBW 5 wires / DMX512	1122	35 mm	10° / 30° / 45° / 60° / 90°

APPLICATIONS & KEY FEATURES

Applications & Key Features

Overview

Professional dry fountain ring LED light with center-hole installation, RGB/RGBW and DMX512 options for SmartVision water show projects.

Applications

Dry deck fountains, interactive fountains, public plaza water shows, musical fountains, hotel and resort landscapes, commercial water features and architectural fountain lighting.

Key features

Dry fountain embedded ring design; center-hole installation; Φ160 mm cut-out reference; IP68/IP69/IP69K; RGB/RGBW and DMX512 variants; AISI304/AISI316 stainless steel; multiple beam angles; low-voltage fountain lighting.
